Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Chiều dài: | 1600MM | Chiều rộng: | 1900mm |
|---|---|---|---|
| Chiều cao: | 1550mm | Tổng khối lượng: | 1100kg |
| Kích thước PCB: | 80 * 110mm ~ 345 * 600mm | kẹp pcb; ing: | điều chỉnh áp suất khí nén |
| Hệ thống: | cửa sổ7 | Phần mềm: | r & d độc lập |
| Trưng bày: | màn hình cảm ứng | thiết bị đầu vào: | bàn phìm chuột |
| Số máy ảnh: | 5 | Quyền lực: | 380AC 50Hz |
| tiêu thụ năng lượng: | 5KW | chế độ lắp: | Nhóm của nhóm thanh |
| Thành phần không gian: | 0,2MM | trạm cấp liệu: | 32 chiếc |
| Vòi phun: | 32 chiếc | Tốc độ lắp đặt: | 150000CPH |
| Chiều cao lắp đặt: | 15mm |

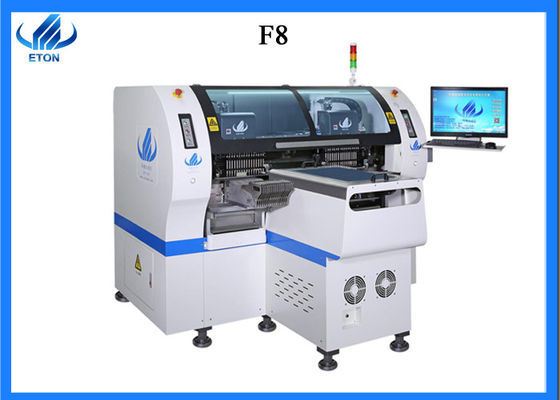

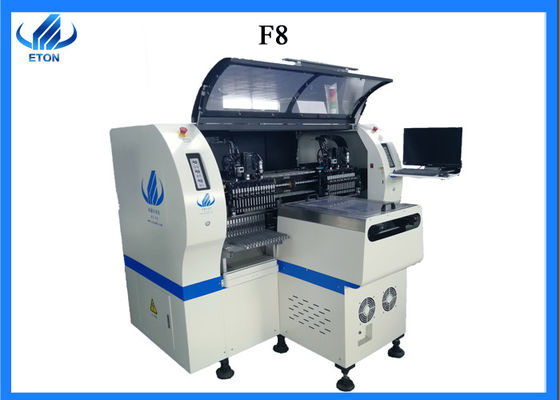

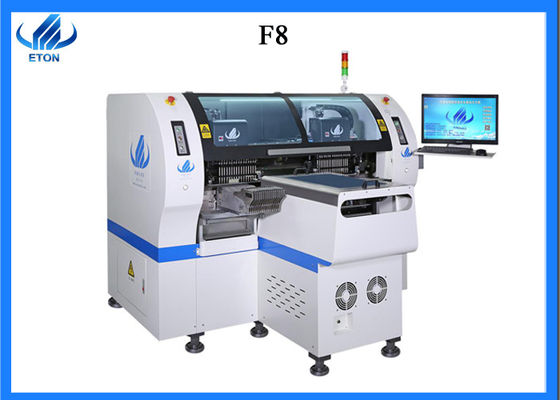

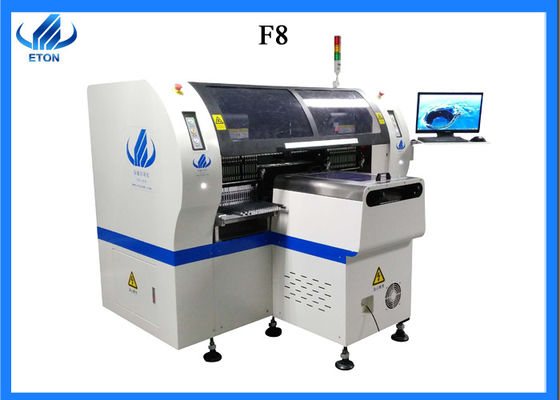

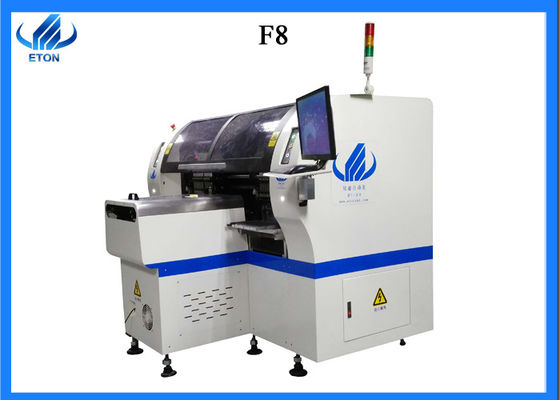

1.product details
Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.
2.product features of high speed pick and place machine
2.technical parameter of smt mounter machine
| Model number | HT-F8 |
| Dimension | 1600*1900*1550mm |
| PCB size | 80*110～345*600mm |
| PCB thickness | 0.5～5mm |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | LED monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <15mm |
| mounting speed | 150000CPH |
| components space | 0.2mm |
| NO.of feedings station | 32pcs |
| NO.of nozzles | 32pcs |
| power | 220AC 50HZ |
| power consumption | 5KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | Auto online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | servo motor |
| feeding way | electric feeder with double motor |
3.trade terms of smt mounter machine
| Accepted delivery terms | EXW, FOB, CIF , CFR |
| Accepted payment currency | USD, CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
5.our services
6.our clients
7.Our certificates and certifications
What are you still hesitating about? Come and contact us !
ETON---Quality placement machine equipment supplier !
Your best choice--- high speed mounter HT-f8 !
If you want to buy a mounter, please do not hesitate to choose us!
We will serve you wholeheartedly!
