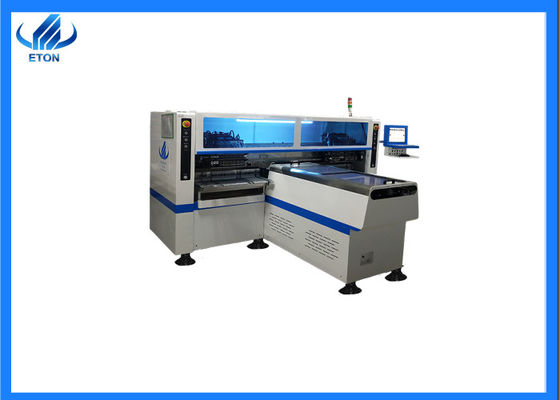

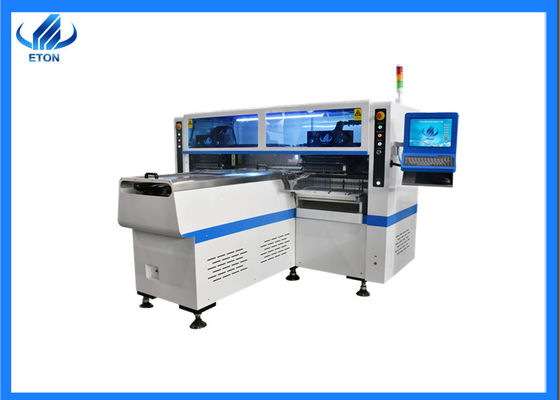

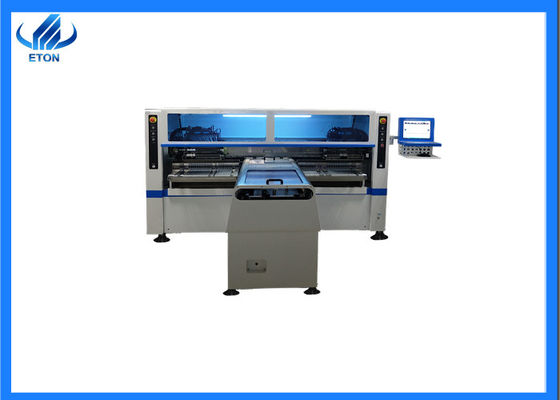

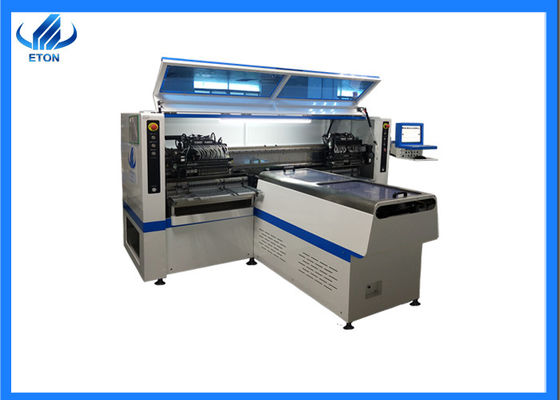

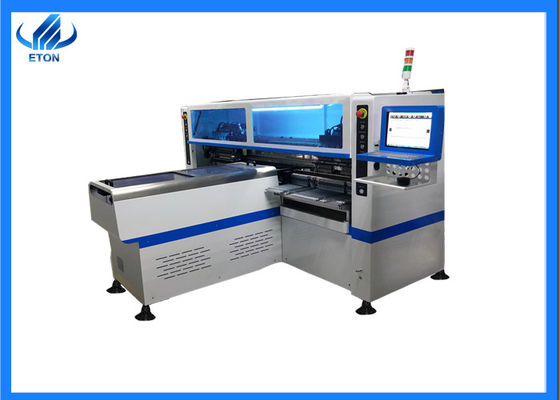

pick and place machine for led,smt pick and place ,automatic pick and place,magnetic linear motor high speed mounter


6.Company profile



7.Our  clients


8.FAQ

• SMT mount cycle

mount cycle is the most basic parameter for marking mount speed. it refers to the time used when picking up components, after detection, sticking to the PCB and then returning the pick up component position. For each trip, complete a mount operation, that is, a mount cycle. The mounting period of Chip components is less than 0.2 s. At present, the maximum mounting period is 0.06-0.03 s;- and the mounting period of machine mounting QFP is 1~2.

• Selection of Surface Mounting Components

selection and design of surface mounted components is a key part of the overall design of the product. the designer determines the electrical properties and functions of the components in the system structure and detailed circuit design stage. the packaging form and structure of surface assembled components should be determined in the SMT design stage according to the specific conditions of the equipment and process and the overall design requirements. solder joints installed on the surface are both mechanical and electrical connection points, and reasonable selection has a decisive effect on improving PCB design density, productivity, testability and reliability.

There is no difference in function between surface mounted components and plug-in components, the difference lies in the packaging of components. Choose the appropriate package, the main advantages are :1). effectively saving PCB area ;2). provide better electrical properties ;3). protect the interior of the components from environmental effects such as moisture ;4). provide good communication links ;5). help dissipate heat and facilitate transmission and testing.
