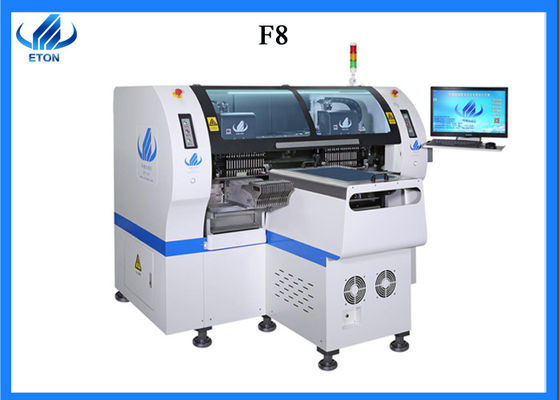

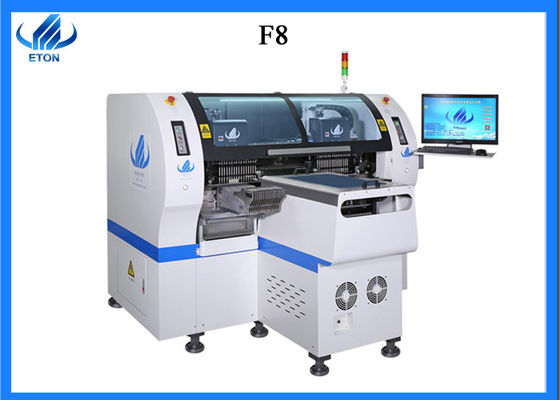

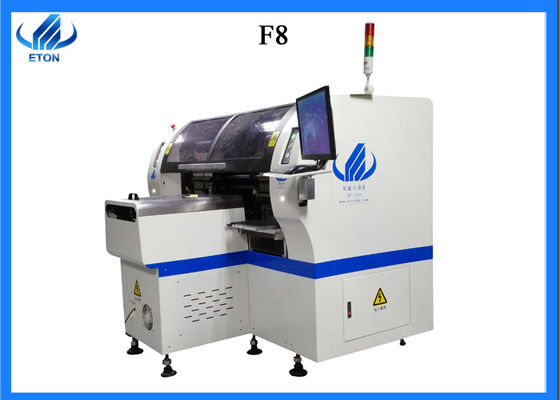

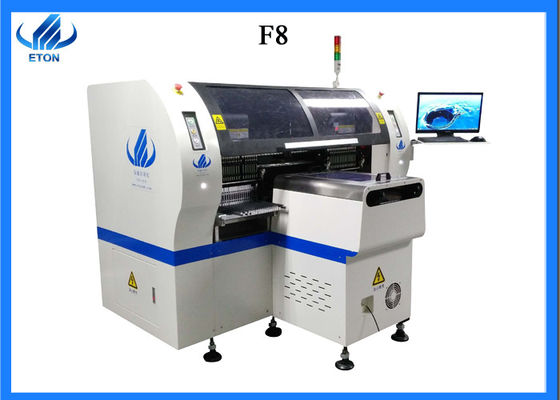

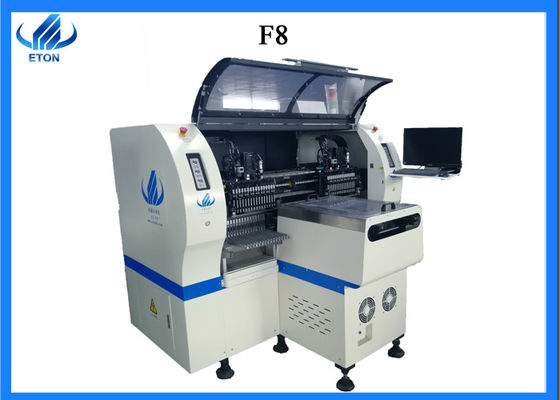

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor

Hình ảnh lớn :  high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: eton
Chứng nhận: ccc,ce,sira
Số mô hình: ht-f8
Tài liệu: Sổ tay sản phẩm PDF
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 đơn vị
Giá bán: $70,000.00/unit
chi tiết đóng gói: Vật liệu chống thấm đóng gói và trường hợp bằng gỗ
Thời gian giao hàng: 30 ngày làm việc
Điều khoản thanh toán: L / C, T / T
Khả năng cung cấp: 80 đơn vị mỗi tháng
Chi tiết sản phẩm
Kích thước PCB: 80 * 110mm ~ 345 * 600mm kẹp pcb; ing: điều chỉnh áp suất khí nén
Hệ thống: cửa sổ7 Phần mềm: r & d độc lập
Trưng bày: màn hình cảm ứng thiết bị đầu vào: bàn phìm chuột
Số máy ảnh: 5 Quyền lực: 380AC 50Hz
tiêu thụ năng lượng: 5KW chế độ lắp: Nhóm của nhóm thanh
Thành phần không gian: 0,2MM trạm cấp liệu: 32 chiếc
Vòi phun: 32 chiếc Tốc độ lắp đặt: 150000CPH
Chiều cao lắp đặt: 15mm

1.product details



Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.



high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model number HT-F8
Dimension 1600*1900*1550mm
PCB size 80*110~345*600mm
PCB thickness 0.5~5mm
mounting mode group to take and group to mount
system windows 7
display LED monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <15mm
mounting speed 150000CPH
components space 0.2mm
NO.of feedings station 32pcs
NO.of nozzles 32pcs
power 220AC 50HZ
power consumption 5KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode Auto online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way servo motor
feeding way electric feeder with double motor


high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 1




 2.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 5 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 2



3.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 3






4.Company profile

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 4

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 5



high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 6


high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 7


5.Our  Our certificates and certifications

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 8


6.our services
high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 9

7. trade show


high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 10







high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor 11












  • Ball bubble assembly line
  • Since incandescent lamps and electronic energy-saving lamps still occupy a very high proportion in people's daily use, in order to reduce waste, LED lighting manufacturers must develop LED lighting products that conform to existing interfaces and people's usage habits, so that people can use a new generation of LED lighting products without the need to replace the original traditional lamp base and line. As a result LED the bulb came into being.
  • Category:

According to lamp head classification, divided into B22,E26,E27,E14

Classification according to heat dissipation case: plastic case, aluminum profile, ceramics

Type according to lamp holder: Snail: E27,E14,E22,E12; bayonet: B22( bayonet must flush needle)

  • Advantages of LED bulb: energy saving, environmental protection; long service life; no strobe

more energy saving: the energy consumption of LED lamps is 1/4 of that of energy saving lamps and 1/10 of incandescent lamps.

longer life :50,000 hours, three ~ five times the energy saving lamp.

healthier: uniform light guide, no stroboscopic, no glare, no uv and transverse.

More environmentally friendly: does not contain the pump lamp harmful material, may recycle.

Full color change. Easy installation.

  • Assembly Steps of Ball Bubbles

① manually put the drive board into the lamp cup;

② Machine calibration drive position (positioning);

③ Automatic Optical Source Board

④ Calendering Power Sheet for Automatic Pressing Machine

⑤ Automatic straightening

⑥ Automatic upper lamp head, test luminous or not, cut wire, punching needle, upper rivet, then rivet detection

⑦ Electrical parameter test, light source board test, defective products

⑧ Glue coating for dispensing

⑨ Automatic lampshade

⑩ Aging line, bad products

⑪ Automatic marking machine marking

⑫ Automatic packing

  • Machines required

① LED automatic lamppost assembly machine

Artificial put drive into the lamp cup, put on the tray by the manipulator grab to the assembly machine, CCD detection, position detection, brush heat conductive silica gel, on the lamp bead board, test.

②  LED automatic lampholder assembly machine

After the main platform is loaded, the center line is automatically adjusted, the upper head is mounted, the traverse is tested, and the rivet is punched on the needle.

③ LED bubble shell gluing machine

High voltage resistance test, electrical parameters test, bad products out. qualified product dispensing on the bubble shell.

④ LED bubble auto-aging line

Mainly for aging, four-stage voltage: high-voltage aging, high-voltage aging, atmospheric impact, atmospheric aging.

⑤ LED automatic cleaning marking machine

Waiting for cleaning test, marking.

⑥ LED automatic packing machine

automatically open the box and pack the lamp box cover.
