Cost-Effective 10 Heads SMT Mounter Machine pick and place mounter machine

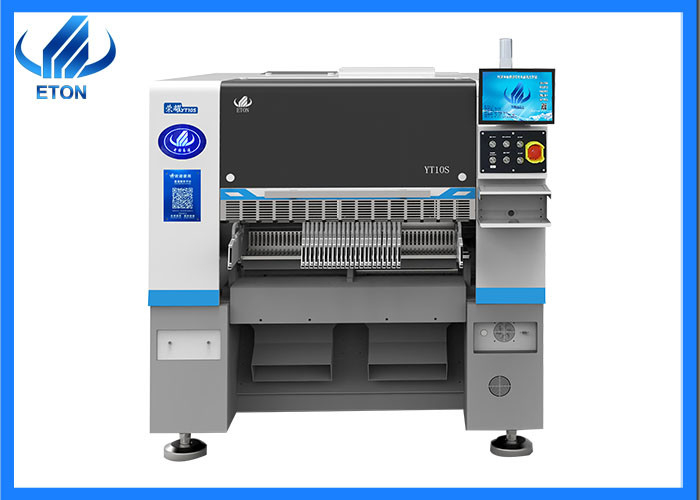

Cost-effective 10 heads SMT mounter machine

Key words: 10 heads smt mounter/ cheap smt mounter/pcb smt mounter

Machine features

Integrated Placement Head

Lightweight, with an integrated head design and 10 sets of Z axes independently controlled by modular magnetic linear motors, resulting in significant improvements in speed, accuracy and stability

Precision Corner System

10 heads per module, The modular corner system independently controls the angle of each component to ensure high-precision placement.

Vacuum Sensing Device

Each placement head with an independent detection function, which improves the stability of the equipment and the reliability of the product.

Fly Vision Camera

The integrated flying recognition camera shortens the vision routine time, after head picking , scanning and moving working at the same time. Support recognize smd component from 0201-15*15mm

Double Mark Recognition

Adopt 3-color illumination recognition, apply to any shape Mark and LENS(Blue-Ray scan), wider range of applications

Fixed flight vision camera (optional)

A fixed vision camera could quickly capture multiple head images at once and perform visual calibration of image position, alignment correction, and adjustable light source brightness. Support recognize smd component from 0201-40*40mm

Fixed Feeder Station

Standard fixed feeder station number 52 pcs, meet most of electric pcb mounting required

Double Side Feeder Station (Optional)

Support Double side feeder station option, maximum feeder number could reach 104 pcs.

ETON R&D Electric Feeder Design

Using ETON advanced new double head electric feeder design, precision and support for 0201 tiny component feeding. By optically correcting the feeding position of the component, achieve stable, accurate and high-speed feeding
