Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Warranty: | 1 year | Applicable components: | 0402 |
|---|---|---|---|
| Name: | SMT automatic Pick and Place Machine | Application: | LED lights, electrical products, household appliance |
| Power supply: | 220V,50-60HZ | Condition: | New |
| Weight: | 2080KG | Mounting speed: | 48000 CPH(Optimal speed) |
| Dimension: | 1490*2020*1650mm | Feeders: | 52 PCS(option 104 PCS), IC tray option |
| Pcb thickness: | 0.5-5 mm | ||
| Điểm nổi bật: | 10 Heads Pick And Place Machines,500*470mm PCB SMT Pick Place Machine,LED Lighting SMT Pick Place Machines |
||

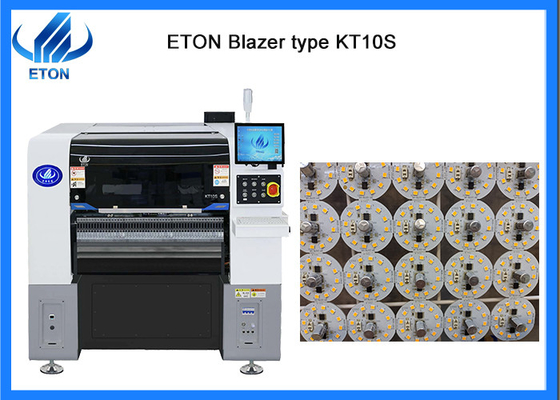

LED lighting 500*470mm MAX PCB SMT 10 heads pick and place machine
Description

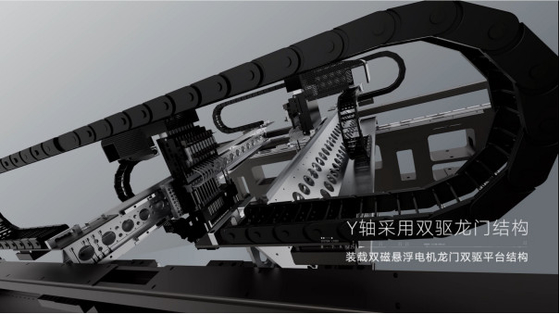

INVENTION PATENT:PLACEMRNT HEAD
1.Integrated placement head
Lightweight and the head is integrally formed,and the 10 sets of Z axis are independently contralled by modular magnetic linear motor,which greatly improve the speed ,accuracy and stability.
Machine main features
Machine main parameter
| Model | KT10S |
| Dimension | 1460*2015*1654mm |
| Total weight | 2080kg |
| PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |
Machine application
Our advantage
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
