Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Application: | LED lights, electrical products, household appliance | Power supply: | 220V,50-60HZ |
|---|---|---|---|
| Warranty: | 1 Year | Applicable components: | 0402 |
| Condition: | New | Product name: | Automatic SMT pick and place machine |
| Weight: | 2080KG | Mounting speed: | 48000 CPH(Optimal speed) |
| Dimension: | 1490*2020*1650mm | Feeders: | 52 PCS(option 104 PCS), IC tray option |
| Pcb thickness: | 0.5-5 mm | ||
| Điểm nổi bật: | 0.5-5 Mm PCB Surface Mount Machine,5 Mm PCB SMT Pick Place Machine,48000 Capacity SMT Pick Place Machine |
||
48000 Capacity multifunctional ANC SMT pick and place machine
Description

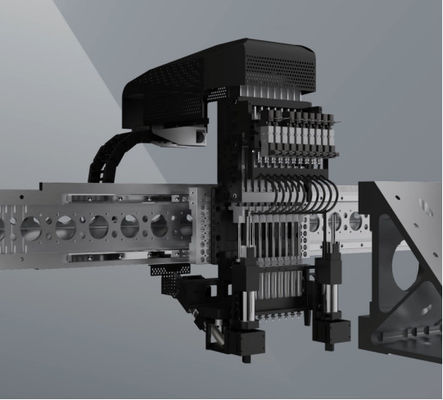

Vacuum Sensing Device
Each placement heads with independent detection function,which inproves the stability of the equipment and the reliability of the product.
Machine main features
Machine main parameter
| Model | KT10S |
| Dimension | 1460*2015*1654mm |
| Total weight | 2080kg |
| PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
