High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT

High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT
High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT

Hình ảnh lớn :  High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: ETON
Chứng nhận: CE,CCC,SIRA,ISO
Số mô hình: HT-F9
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
chi tiết đóng gói: Đóng gói trong gói phim và bông xốp, và bọc túi chân không trong hộp gỗ chắc chắn.
Thời gian giao hàng: 30 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 50 bộ mỗi tháng
Chi tiết sản phẩm
bảo hành: 1 năm tên: Máy chọn và đặt tự động SMT
Ứng dụng: Dải đèn LED, đèn tuýp, đèn panel Cung cấp điện: 380AC 50HZ 6kw
Điều kiện: mới Trọng lượng: 1700kg
tốc độ lắp: 200000-250000CPH Cấu trúc: 2700*2300*1550mm
máng ăn: 68 CÁI độ dày pcb: 0,5-5mm
Điểm nổi bật:

LED Tube SMT Placement Equipment

,

High Production Mounter Machine In SMT

,

LED Tube Mounter Machine In SMT

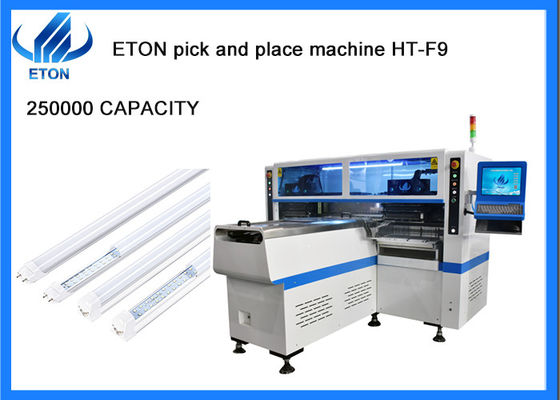

High quality production LED tube light SMT placement mounter



Production description

  • Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with 250000 CPH capacity, available for board with any proportion of LED chip and resistor.

  • Owing an exclusive technology of group picking and group placing, PCB size is 1200*330 can mount LED 3014/3020/3528/5050 or resistor, capacitor and bridge rectifiers, etc.

Features

  • Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.

  • Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.

  • Calibration automatically, high precision, available for RGB.

  • Exclusive patent technology: Group to take and group to mount.

  • IPC9850 capacity: 200000-250000 CPH





Machine parameter

Model

HT-F9

PCB length width

Max: 1200*330mm

Min: 100*100mm

PCB thickness

0.5-5mm

PCB clamping

Adjustable pressure pneumatic

Mounting mode

Group picking and group placing

Mounting precision

±0.02mm

Mounting speed

200000-250000 CPH

No. of feeders station

68 PCS

No. of head

68PCS

High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT 0



SMT Line solution

The equipment required for the semi-automatic production line includes:

  • Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;

  • Pick and place machine: mount the led chips or other components on the designated position on the PCB board;

  • Reflow oven: melting the solder paste to make it adhere to the mounting components;

  • Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT 1

Our Exhibitions



As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT 2

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.

High Quality Production LED Tube Light SMT Placement Equipment Mounter Machine In SMT 3

FAQ

Q.How can I make inspection when something wrong with the machine?

A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.



Q. How can I contact you to buy the goods in an efficient way?

A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
